Apache Weights / Pricing/
Specifications / etc.
NOTE: The Museum page contains
brochures with floor plan layouts and measurements from most of the models.
This is Ole' Elmer's
personal cheat sheet that I cleaned up and typed out the barely readable notes.
The other files I got from gleaning the info from the brochures that Fred of Apache
Sales sent. -Paul Drescher
(Click the pic to see the
full-size sheet.)
PLEASE NOTE: The Apache
Museum contains many brochures with the following specifications listed for
various years other than 1975.
1975 SPECIFICATIONS / CAPACITIES
| |
Shipping Weight * |
Maximum Carrying Capacity ** |
Maximum Gross Vehicle Weight |
Gross Tongue Weight *** |
Length (including tongue) |
Width |
TIRES |
Ply
Rating |
Size |
| Ramada |
1740 |
560 |
2400 lbs |
240 -
360 lbs |
16' - 6&1/2" |
6' -
7'&7/8" |
6 ply |
20.5 X 8.0 X 10" |
| Roamer |
1850 |
550 |
| |
|
|
| Royal |
1590 |
810 |
14' - 10" |
| Eagle 8 |
1410 |
590 |
2000 lbs |
200 -
300 lbs |
4 ply |
| Mesa |
1390 |
610 |
13' - 1/2" |
| Eagle 600 |
1165 |
835 |
* - Weight of standard equipped trailer with gas and water systems dry.
** - Weight of options and accessories, must be deducted from carrying capacity
*** - Gross tongue weight is 10 to 15% of the maximum gross vehicle weight.
Therefore, the figures given are the safe range
for a fully loaded trailer.
Water Storage Tank Capacity - 10 gallons (U.S.) 8.32 gallons (Imp.)
Caution: Do not exceed the gross vehicle weight. See loading your camper on page 1 of
this manual.
| ADDITIONAL 1975 WEIGHT INFO. |
| Standard Canopy |
Lbs. |
| Eagle 4 |
32 |
| 8' Models |
12 |
| 10' Models |
14 |
| 12' Models |
17 |
| Deluxe Canopy |
|
| 8' Models |
40 |
| 10' Models |
43 |
| 12' Models |
46 |
| Carpeting |
15 |
| Refrigerator |
50 |
| Furnace |
32 |
| Extra gas bottle (dry) |
21 |
|
| Spare tire & wheel 8" |
11 |
| Spare tire & wheel 10" |
26 |
| Stereo |
9 |
| Power lift |
14 |
| Portable toilet |
23 |
| Wheel discs |
2 |
| Brake control |
5 |
| Privacy curtains |
4 |
| Bumper |
20 |
| Add-a-room (Eagle 4) |
33 |
| Add for axle w/brakes if not standard |
30 |
| Water tank capacity (lbs. of water) |
80 |
Gas bottle capacity
(lbs. of LP gas) |
20 |
|
ADDITIONAL MEASUREMENT INFO.
Open Camper measurements. Thanks for sharing these Irene! |
1978
MESA - 16' 1" x 6' 8"
WAR EAGLE-5300 - 17' 5" x 6' 10"
WAR EAGLE-5301 - 17' 5" x 6' 10"
ROYAL, RANGER - 19' x 6' 8"
WAR EAGLE-5801 - 19' x 6' 10"
WAR EAGLE-5802 - 19' x 6' 10"
RAMADA - 20' 7" x 6' 8"
CIMARRON - 20' 7" x 6' 8"
ROAMER - 20' 7" x 6' 8"
WAR EAGLE-6302 - 20' 8" x 6' 10"
1979
EAGLE-130 - 13' x 5' 1"
EAGLE-130H - 13' x 5' 5"
MESA - 16' 1" x 6' 8"
YUMA-I - 16' 1" x 6' 8"
EAGLE-169 - 16' 9" x 6' 7"
EAGLE-169K - 16' 9" x 6' 7"
ROYAL - 19' x 6' 8"
RANGER - 19' x 6' 8"
EAGLE-192 & 192D - 19' 2" x 6' 7"
RAMADA - 20' 7" x 6' 8"
CIMARRON - 20' 7" x 6' 8"
ROAMER - 20' 7" x 6' 8"
1980
MESA - 13' x 6' 7"
YUMA-I - 13' x 6' 7"
ROYAL - 14' 10" x 6' 7"
RANGER - 14' 10" x 6' 7"
RAMADA - 16' 7" x 6' 7"1981
CUB I - 10' x 6' 7"
CUB II - 10' x 6' 7"
CUB III - 10' x 6' 7" |
1984
RAMADA I & II - 16' 6" x 6' 7"
1985
EAGLE 4 - 7' x 6' 7"
EAGLE 8 - 15' 9" x 6' 7"
EAGLE 10 S - 18' 9" x 6' 7"
EAGLE 10 R - 18' 9" x 6' 7"
MESA-R, MESA-S - 19' x 6' 7"
RAMADA - 21' 5" x 6' 7"
RANGER - 21' 5" x 6' 7"
CIMARRON I - 21' 5" x 6' 7"
CIMARRON II - 21' 5" x 6' 7"
ROYAL - 21' 5" x 6' 7"
1986
MESA - 20' x 6' 5"
RAMADA - 22' x 6' 5"
RANGER - 22' x 6' 5"
CIMARRON I - 22' x 6' 5"
CIMARRON II - 22' x 6' 5"
ROYAL - 22' x 6' 5"
1987
MESA - 19' 11" x 7' 7"
RAMADA - 21' 5" x 7' 7"
RANGER - 21' 5" x 7' 7"
CIMARRON - 21' 5" x 7' 7"
ROYAL - 21' 5" x 7' 7"
APACHE SALES CORP
1444 IMLAY CITY RD, LAPEER, MI. 48446
1978 1979 1980 1981 1984 1985 1986 1987
DID NOT MANUFACTURE CAMPING TRAILERS IN 1982,1983.
NO LONGER IN PRODUCTION. |

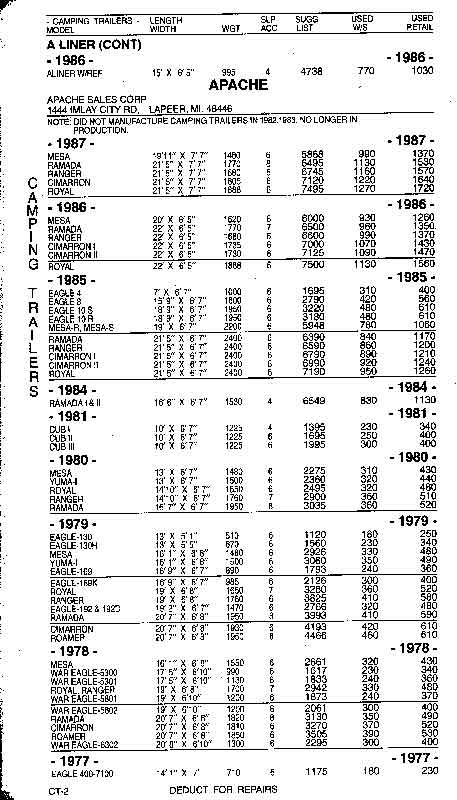

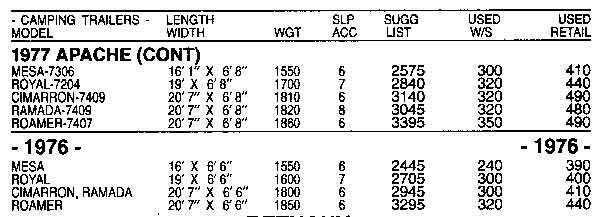

2000 NADA GUIDE
My wife brought home a NADA RV Appraisal Guide from the last
quarter of 2000, and I've scanned the Apache pages. -- Dan Meyer
(1975) APACHE
PRICING / OPTIONS LIST
Base Prices2.pdf is apparently
from 1975. We're not entirely sure what year the first one was published. Perhaps it was
the same year, different dealer? These are cool files to view, especially the options
lists. Imagine being able to order this stuff today! Thanks for sharing these Dennis! (NOTE: You need Acrobat Reader to view these
files. There's a link near the bottom of the Parts page
to get it for free.)
